VKTRS People is a low-poly Archicad object for placing people in drawings and client presentation views. It offers multiple plan, elevation and 3D representations, with graphic controls so entourage stays clear and secondary to the design.
FUNCTION
What It Does
Provides a people object for Archicad with selectable representations for plan, elevation and 3D views.
SYSTEM
How It Works

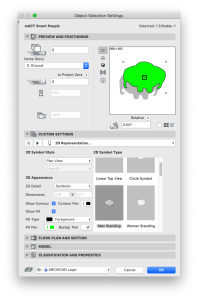

The object is placed in the model and adjusted using its representation and graphic controls. Built-in graphic options are available; custom graphics can be used where the object supports it, per the supplied instructions.
Inputs
Archicad 27+, the VKTRS People object, chosen representation settings, and optional custom graphics where applicable.
Outputs
People figures in plan, elevation and 3D for drawings and presentations, tuned to the selected graphic mode.
OPTIONS
Representation Range

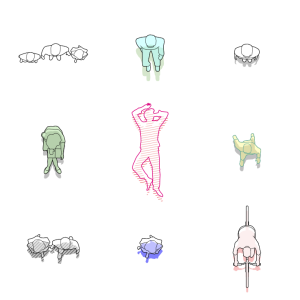

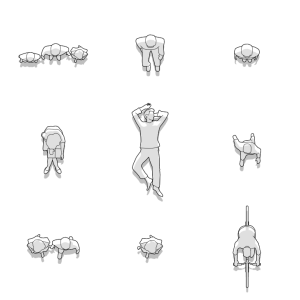

- Plan representation options

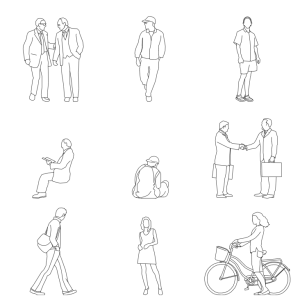

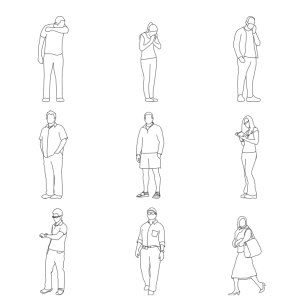

- Elevation representation options

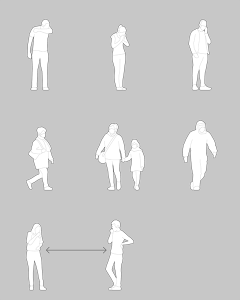

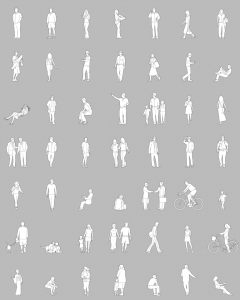

- 3D view options
- Graphic modes including detailed, symbolic and individual treatments
- Alignment with model view options where applicable
IMPACT
Why It Matters
It offers a lighter-weight entourage option that reads clearly in documentation without defaulting to heavy, high-polygon figure content.
USE CASE
Drawing And Presentation Entourage
A practice needs consistent people entourage for plans, elevations and 3D views that stays readable in review and presentation without dominating the sheet.
